MONOROOF

PU & PIR Roof Panels

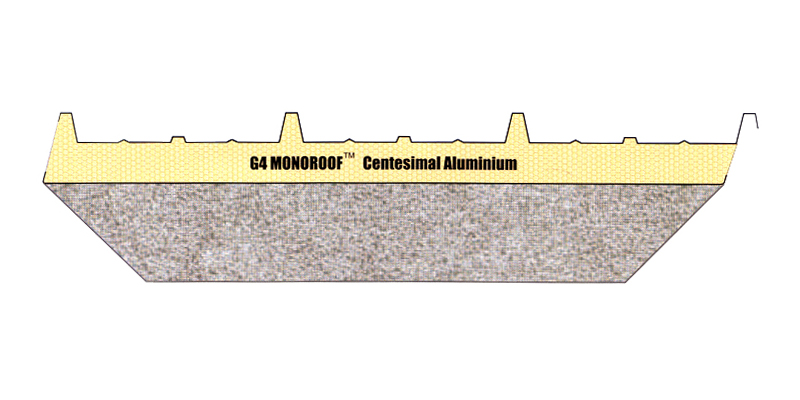

MONOROOF PU & PIR Roof Panels

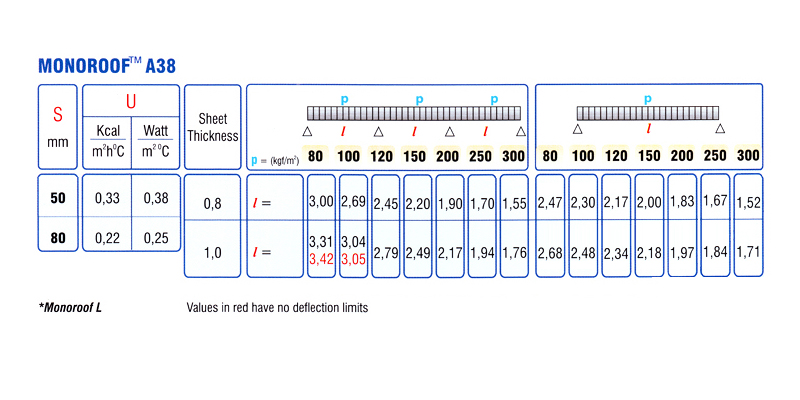

GLAMET is Self-Supporting metal roof panels, insulated with PU/PIR Rigid foam, for pitched roofs with a minimum slope of 7% or 4o with GLAMET serie, both face material are metal, which act as united structure with foam core providing stregth than other traditional roofs Hence, reducing purin structure, which span table provide as below.
Number of ribs 4 ribs
Top sheet
Pre painted Aluminum Zinc coated steel 0.45 mm
Aluminum sheets 70 micron
Bottom sheet
PVC sheet 70 micron
Aluminum sheets 0.08 mm
Polyurethane thickness
Polyurethane foam specification
PU foam type B3 grade, B2 grade (PIR)
Overall density 38 +/- 2 Kg / m3
Thermal conductivity of PU foam 0.024 Kcal / w k
Useful width 1,000 mm
Rib height 38 mm
Temperature range - 40°C to + 80°C
