GLAMET

PU & PIR Roof Panels

GLAMET PU & PIR Roof Panels

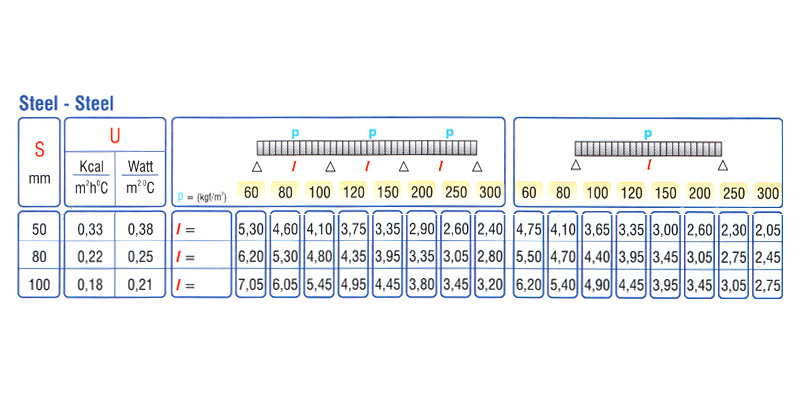

GLAMET is Self-Supporting metal roof panels, insulated with PU/PIR Rigid foam, for pitched roofs with a minimum slope of 7% or 4o with GLAMET serie, both face material are metal, which act as united structure with foam core providing stregth than other traditional roofs Hence, reducing purin structure, which span table provide as below.
Number of ribs 4 ribs
Top & Bottom sheet
Pre painted Alu - 2 inc sheet 0.45 mm
Aluminum sheets 0.70 mm
Polyurethane thickness 40mm, 50mm, 60mm, 80mm, 100mm
Polyurethane foam specification
PU foam type B3 grade, B2 grade (PIR)
Overall density 38 +/- 2 Kg / m3
Thermal conductivity of PU foam 0.024 Kcal / watt
Useful width 1,000 mm
Rib height 38 mm
Temperature range - 40°C to + 80° C
